We provide EDR equipment for the concentration of R.O. Reject brine upto 80gm/lit and provide max. recovery to 90%
We have been very successful for the treatment of Whey and offer products as DM 90/70/50 by EDR process with least waste generation. We perform equally good on Mother Liquor treatment as well as UF permeate. India we have client like Amul ,Banas Dairy, Bhole Bab Milk Food Industries.
| Client: | JSC MINUDOBRENIYA – Rossosh, |
| Project: | Treatment of waste waters from production of NPK in order to reuse ED concentrate back in the production process. Diluate stream is used in water management of the company. |
| Locality: | Rossosh, Russia |
| Commissioning:: | 2012 |
| Feed specification: | 60 m3/hour of wastewater from ammonia nitrate production, 1,7 g/l (mainly NO3, NH4+) |
| Requirement for product: | ED concentrate approx.100 g/l (1 m3/h), diluate approx. 0,05 g/l (59 m3/h) |

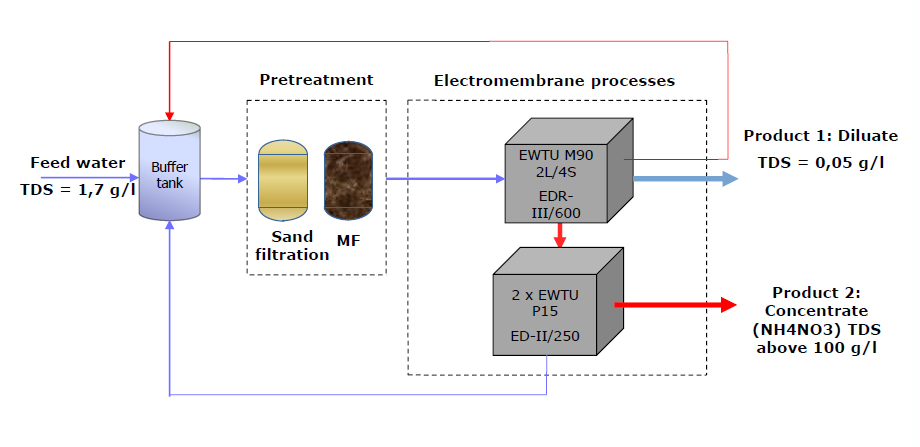

| MEGA technology: | Pretreatment - Sand filtration plus microfiltration RALEX® EWTU М90 2L/4S EDR-III/600; RALEX® EWTU P15 2xED-II/250; |
| Mode: | 1. part: Basic demineralization on RALEX® EWTU M90 2L/4S
EDR-III/600 operating in one-pass mode 2. part: The concentration on the two units RALEX® EWTU P15 2xED-II/250 operating in batch mode |
 |
 |
 |
 |
 |
| Client: | AO KUYBYSHEV AZOT |
| Project: | Treatment of waste waters from production of NPK in order to reuse ED concentrate back in the production process. Diluate stream is used in water management of the company. |
| Locality: | Togliatti, Russia |
| Commissioning:: | 2013 |
| Feed specification: | 60 m3/hour of wastewater from ammonia nitrate production, 2,9g/l |
| Requirement For Product: | ED concentrate approx.120 g/l, diluate approx. 0,04 g/l; |
| MEGA Technology: | RALEX® EWTU М90 2L/4S EDR-III/600; RALEX® EWTU 4xED-II/250; 2xRALEX® EWTU HPW P32 8xEDI-X |
| Mode: | 1.part: Basic demineralization on RALEX® EWTU M90 2L/4S
EDR-III/600 operating in one-pass mode 2. part: The concentration on the two units RALEX® EWTU 4xED-II/250 operating in batch mode |
